66 31 010 Adjusting remote sensor (LRR sensor)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Carry out adjustment of long-range sensor (1) with special tool 36 1 130 by means of adjusting screws (2) and (3).

(2) = horizontal adjustment
(3) = vertical adjustment

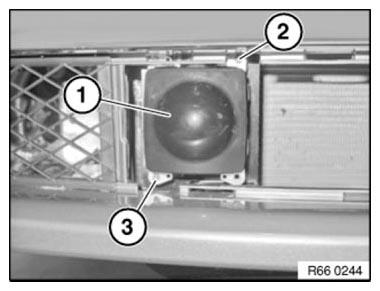

Fig 1: Identifying Long-Range Sensor And Adjusting Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Special tool required:

Active Cruise Control ACC adjusting device, complete.

Order number: 81 10 0 021 292

Consisting of:

Mirror, complete
Wheel laser
Slotted diaphragm
Control bracket (for initial installation of rail)
Rail
Setup and Owner's Handbook (not shown)

Fig 2: Identifying Mirror, Wheel Laser, Slotted Diaphragm, Control Holder And Rail
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A holder which is not included in the scope of delivery is required to support the wheel laser. Use either the quick-action clamp from the existing KDS or ACC wheel holder (36 1 100 ).

NOTE: To adjust the ACC sensor, connect the BMW diagnosis system and fit the ACC adjusting device.
Select ACC system in diagnosis. Start test module "ACC adjustment" (service functions) and proceed in accordance with instructions.
Handle ACC adjusting device in accordance with mounting and Owner's Handbook provided with device.

NOTE: Further information on the ACC adjusting device can be found in the BMW Workshop Equipment and Planning Documentation.
