To remove engine support side frame connection

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

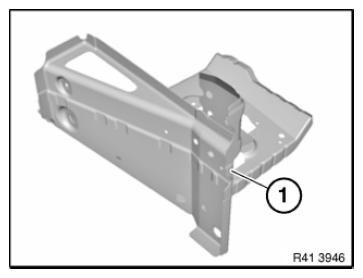

The following new body parts are required:

(1) Connection, wheel arch/entrance

Fig 1: Identifying Wheel Arch/Entrance Connection
Courtesy of BMW OF NORTH AMERICA, INC.

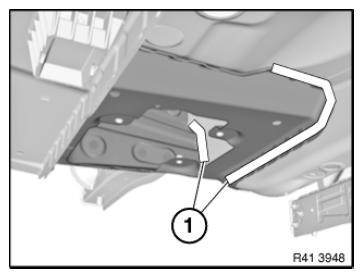

Open welded connections in areas (1).

Fig 2: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

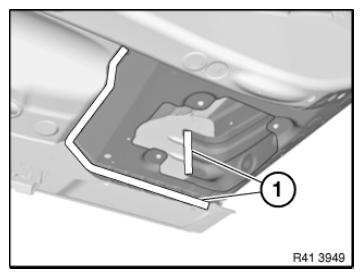

View from below:

Open welded connections in areas (1).

Fig 3: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

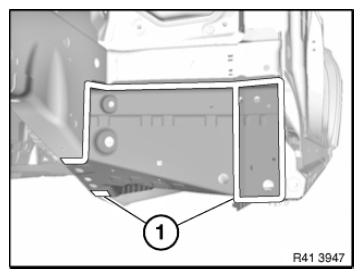

View from below:

Open welded connections in areas (1).

Remove wheel arch/entrance connection.

Fig 4: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.
