Removal of outer wheel arch section

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Cut wheel arch along line (1).

REPLACE CAVITY SEALING (2).

Fig 1: Identifying Cavity Sealing And Wheel Arch Cutting Line

Courtesy of BMW OF NORTH AMERICA, INC.

Cut wheel arch along line (1).

OPEN spot-welded adhesive joints in area (2).

IMPORTANT: Severance cut in area (3) not permitted!

Remove section for outer wheel arch section.

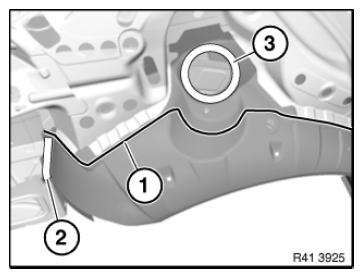

Fig 2: Identifying Wheel Arch Cutting Line And Spot-Welded Adhesive Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.
