41 14 500 Replacing Outer Section Of Left Or Right Rear Wheel Housing (Side Panel Removed): Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Read relevant service information under BODY, GENERAL .
Spot-weld bonding is used on this vehicle. Observe SPOT-WELD BONDING STEEL COMPONENTS .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved SPOT-WELDING APPARATUS for repairs.
Necessary preliminary tasks:
Remove COVER FOR REAR SIDE MEMBER

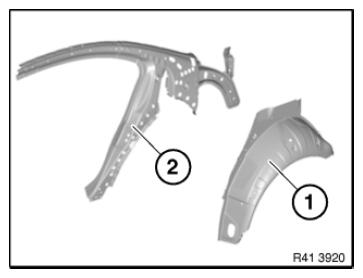

The following new body parts are required:
- (1) Outer wheel arch section, rear
- (2) C-pillar reinforcement
- (3) Shaped parts, entrance (not shown in illustration)
