Removing the wheel arch

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Open welded connections in area (1).

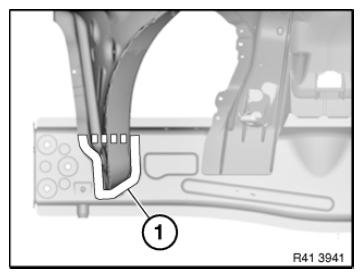

Fig 1: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

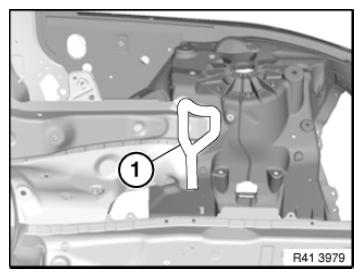

Fig 2: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Roughly cut side frame connection along lines (1).

LOOSEN spot-welded adhesive joints in areas (2).

Open welded connections in areas (3).

Release side frame connection from cavity sealing (4) and remove.

Open remaining welded connections in areas (1).

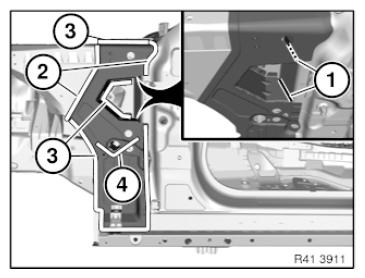

Fig 3: Identifying Side Frame Connection, Cavity Sealing And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove cavity sealing (2).

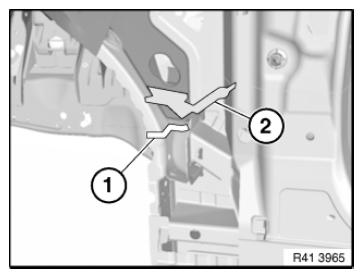

Fig 4: Identifying Welded Connections Area And Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet connections in area (1).

Open bonded connection in area (1).

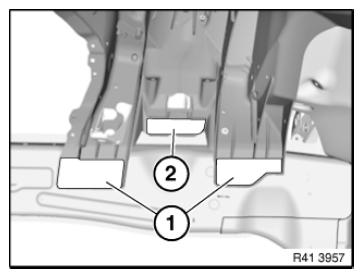

Fig 5: Identifying Bonded Connection Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

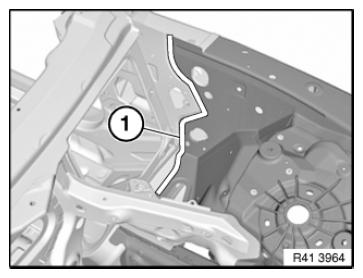

Fig 6: Identifying Wheel Arch Components Welding Area

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet connections in areas (1) and (2).

Open bonded connections in areas (1) and (2).

Remove the wheel arch.

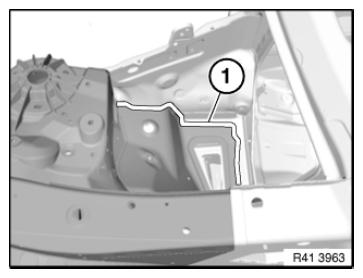

Fig 7: Identifying Rivet Holes Drill Areas

Courtesy of BMW OF NORTH AMERICA, INC.
