41 11 542 Cover For Side Member At Rear (Rear Side Panel Removed): Removal

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Open weld joints in area (1).

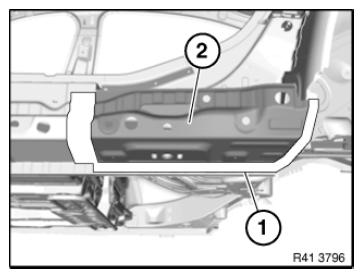

Fig 1: Identifying Rear Side Member Cover And Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open weld joint (1).

Fig 2: Identifying Welded Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from inside:

Open weld joint (1).

Remove side member cover.

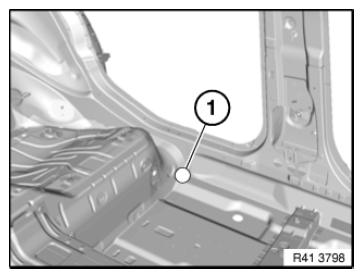

Fig 3: Identifying Side Member Cover Weld Joint

Courtesy of BMW OF NORTH AMERICA, INC.
