41 11 300 Replacing Entrance With Door Post, Left And Right (Partial Replacement, B-Pillar): Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures in REPAIR STAGE 3 .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Use only an approved SPOT-WELDING APPARATUS for repairs!
Place vehicle on straightening bench.
The following new body parts are required:

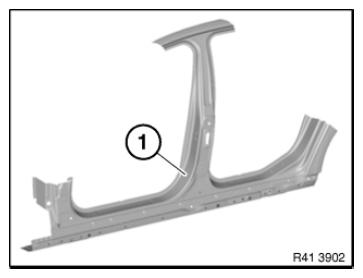

- (1) B-pillar with entrance
- (2) ADHESIVE K1 (not shown in illustration)
- (3) Blind rivets N1 (3 pieces)
