New part preparation

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Mark severance cuts on B-pillar in accordance with severance cuts on the vehicle and cut.

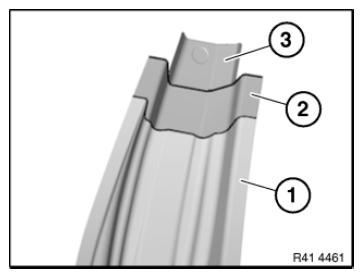

IMPORTANT: Do not cut through support (3) for B-pillar reinforcement.

(2) B-pillar reinforcement outer skin

(1) B-pillar outer skin

Fig 1: Identifying B-Pillar Outer Skin, Reinforcement Outer Skin And Support

Courtesy of BMW OF NORTH AMERICA, INC.

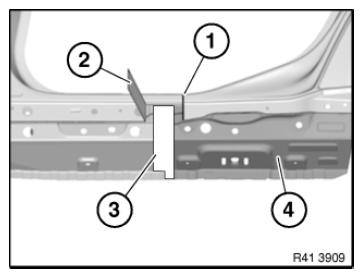

Mark severance cut (1) and other severance cuts according to the severance cuts on the vehicle and cut.

Partially release metal section (2) as described in removal and tilt forwards.

Open weld joints in area (3) and remove cover for side member (4).

Prepare REINFORCEMENT PLATES at severance cuts.

NOTE: After welding in new part, tilt metal section (2) closed again and weld up.

Fig 2: Identifying Severance Cut Mark, Metal Section, Side Member Cover And Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

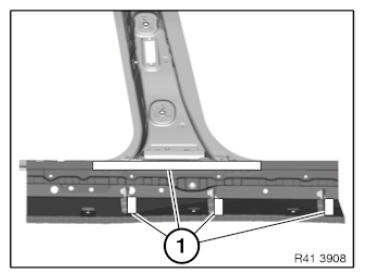

Set 3 6.8 mm □ bore holes for blind rivets in area (1). Drill from passenger compartment.

Fig 3: Identifying Bonded Connection And Spot-Welded Adhesive Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

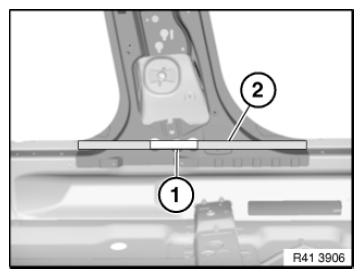

IMPORTANT: Structure bonding!
OBSERVE preparation of bonding surfaces (1).

Adjust new part to fit with set of attachments or universal mount.

Fig 4: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.
