Removal of carrier support in front of wheel arch

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

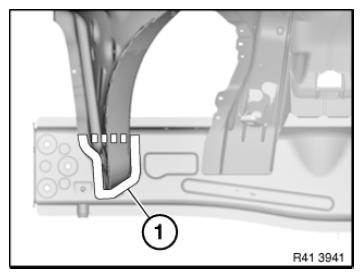

Open welded connections in area (1).

Fig 1: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

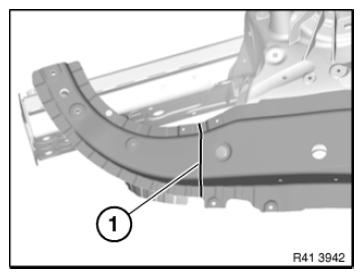

Mark severance cut (1) as pictured and cut.

IMPORTANT: Cut outer panel only.

Fig 2: Identifying Outer Panel Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.

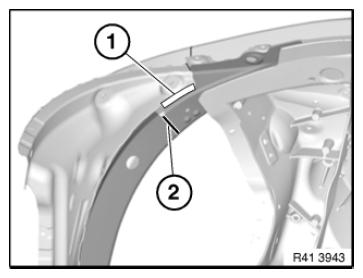

IMPORTANT: Risk of damage to spring strut dome!

Open welded connections in area (1).

Mark severance cut (2) as pictured and cut.

Fig 3: Identifying Severance Cut Mark And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

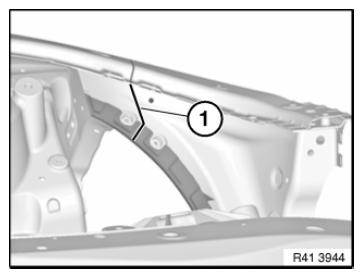

Mark severance cut (1) as pictured and cut.

Remove carrier support section.

Fig 4: Identifying Severance Cut Mark On Carrier Support Section

Courtesy of BMW OF NORTH AMERICA, INC.
