41 11 150 Cover For Frame Side Member (Part Replacement Between A And B Pillar)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedures in REPAIR STAGE 3 .

The following new body parts are required:

(1) B-pillar with entrance

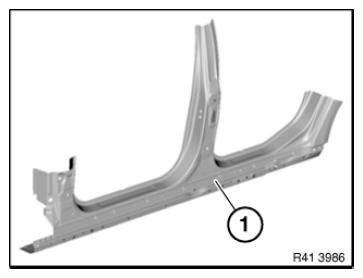

Fig 1: Identifying B-Pillar With Entrance
Courtesy of BMW OF NORTH AMERICA, INC.

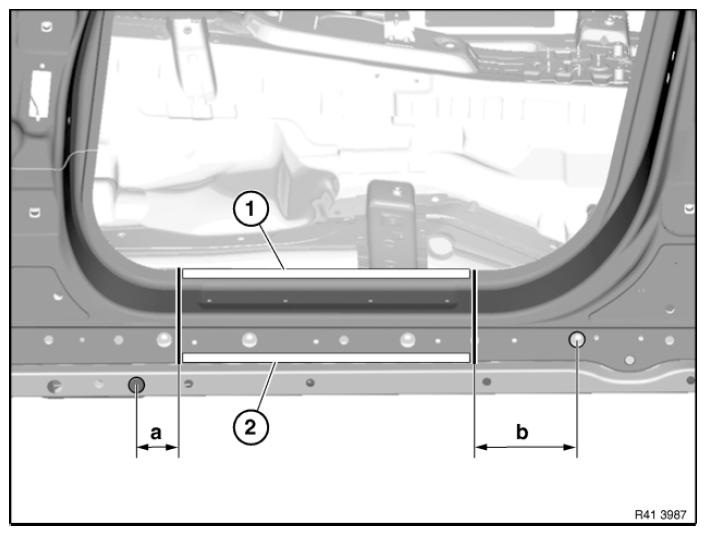

Fig 2: Identifying Rivet Holes Drill Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.
Dimension a = approx. 70 mm behind 25 mm dia. hole.
Dimension b = approx. 180 mm in front of _ 25 mm hole.
Open welded connections in areas (1) and (2).

Installation note:

Mark new part in accordance with severance cuts on vehicle and cut.

Separate welded connections on new part to match vehicle.

Weld in REINFORCEMENT PLATES at all severance cuts.

Apply repair welding spots in area (1) to existing welding spots on vehicle. This is necessary because the adhesive between the spot flanges acts as an insulator.
