41 11 095 Replacing Engine Support In Front Of Wheel Arch, Left

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedures in REPAIR STAGE 3 .

Use only APPROVED SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

Necessary preliminary tasks:

REMOVE CARRIER SUPPORT

The following new body parts are required:

(1) Engine support, front

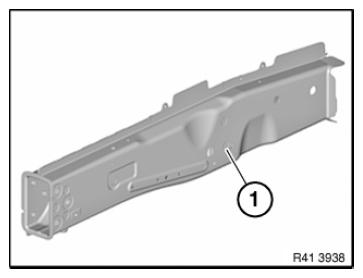

Fig 1: Identifying Front Engine Support

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with Dimension a and cut.

Dimension a=40 mm before wheel arch edge.

Remove section of engine support.

Installation note:

Mark severance cut on new part in accordance with vehicle and cut.

Adjust new part to fit with alignment bracket or universal mount.

Weld in REINFORCEMENT PLATE at severance cut.

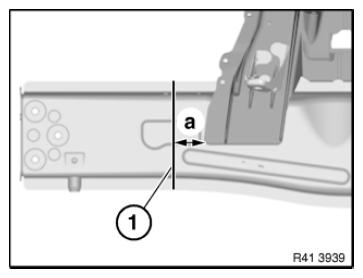

Fig 2: Identifying Engine Support Severance Cut Position

Courtesy of BMW OF NORTH AMERICA, INC.
