Removal of engine support

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Open welded connections in area (1).

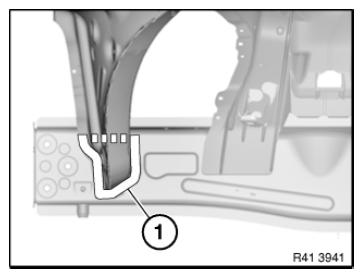

Fig 1: Identifying Engine Support Welded Connections Area

G08507816

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet connections in areas (1) and (2).

IMPORTANT: Do not damage aluminium spring strut dome!
Drill diameter max. 6.8 mm.

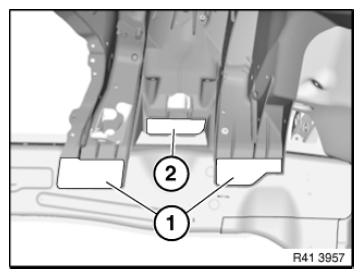

Fig 2: Identifying Rivet Holes Drill Areas

G08507817

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with dimension a and cut engine support.

Dimension a=140 mm

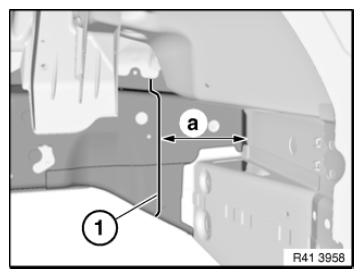

Fig 3: Identifying Engine Support Cutting Position

G08507818

Courtesy of BMW OF NORTH AMERICA, INC.

Roughly mark severance cuts (1) and cut.

IMPORTANT: Do not damage aluminium spring strut dome (2)!

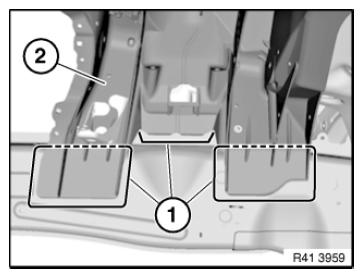

Fig 4: Identifying Aluminium Spring Strut Dome And Severance Cut Marks

G08507819

Courtesy of BMW OF NORTH AMERICA, INC.

Heat ADHESIVE AREAS with hot air blower and release sheet sections (1) from spring strut dome.

IMPORTANT: Do not damage aluminium spring strut dome (2)!

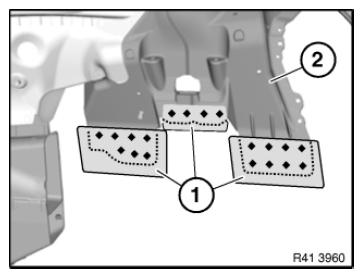

Fig 5: Identifying Sheet Sections And Aluminium Spring Strut Dome

G08507820

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1) and remove engine support section (2).

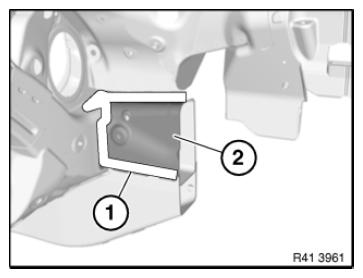

Fig 6: Identifying Engine Support Section And Welded Connection Area

G08507821

Courtesy of BMW OF NORTH AMERICA, INC.
