41 11 091 Replacing Engine Support In Front Of Bulkhead, Left: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Steel-aluminium composite construction is used on the vehicle.
Observe procedures in REPAIR STAGE 3 .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

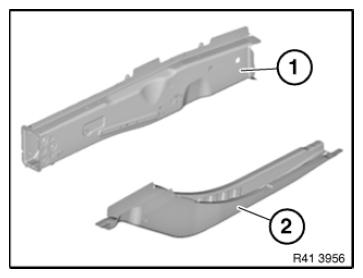

The following new body parts are required:
- (1) Engine support
- (2) Engine support, rear
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N2 | 19 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
