Installing engine support
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Clean bonding surfaces with cleaning agent R1.
Apply adhesive K1 to bonding surfaces.
Install new parts and reinforcement plates with alignment bracket or universal mount.
Using blind rivets, rivet new parts in the areas where the rivets are fitted with adhesive N2.
Weld new parts identically to the series in the other gap areas.

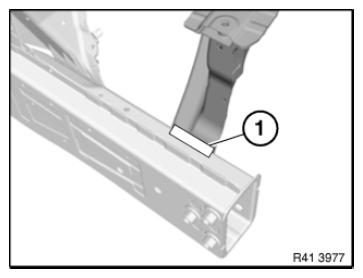

MAG-weld new part in area (1).
To do so, apply 2 fillet welds at spacing of 15 mm. Length of fillet welds approx. 15 mm.
