41 11 015 Replacing Engine Support With Wheel Arch, Left: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Steel-aluminium composite construction is used on the vehicle.
Observe procedures in REPAIR STAGE 3 .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

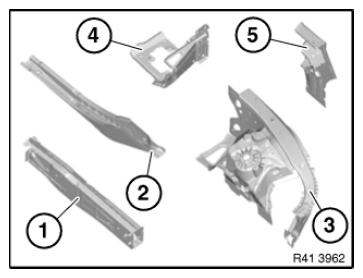

The following new body parts are required:
- (1) Engine support
- (2) Engine support, rear
- (3) Wheel arch, front
- (4) Connection, wheel arch/entrance
- (5) Connection, side frame, rear
- (6) Shaped parts, carrier support, wheel arch, front (not shown in illustration)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N2 | 25 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
