41 35 101 Replacing Rear Left Side Panel: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures in REPAIR STAGE 2 .
The following new body parts are required:

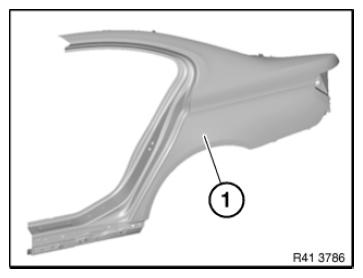

- (1) Side frame, rear
- (2) Reinforcement plate, C-pillar (not shown in illustration)
- (3) Reinforcement plates (not shown in illustration)
- (4) Lock nuts (not shown in illustration)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Adhesive K5a | 1 |
| Blind rivets N3 | 14 |
| Punch rivets N4 | 23 |
| Punch rivets N5 | 4 |
| EMC screws | 3 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
