41 35 081 Removing And Installing Front Side Panel On Left: Replacement

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Apply additional sealant to inside of front panel in area (1). Apply to area (1) based on shape of side wall to be replaced.

Material: SEALANT D1  (sourcing reference via BMW Parts Department).

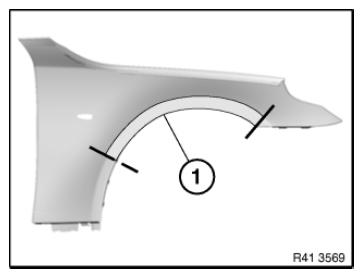

Fig 1: Identifying Front Panel Sealant Applying Area
G08505660Courtesy of BMW OF NORTH AMERICA, INC.
