Only vehicles with park assistant

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Repair work in area (1) is not permitted.

Replace side wall.

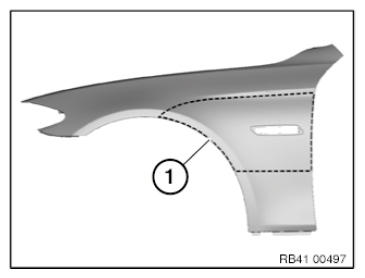

Fig 1: Identifying Side Panel Non-Repaired Area
G08505661Courtesy of BMW OF NORTH AMERICA, INC.

For replacement,  only Japan national version, F10/F11:

Replace wheel arch trim (1).

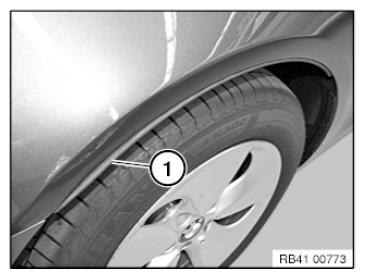

Fig 2: Identifying Wheel Arch Trim
G08505662Courtesy of BMW OF NORTH AMERICA, INC.
