41 21 510 Replacing Front Left Door Post (Front Side Panel Removed): Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures in REPAIR STAGE 3 .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

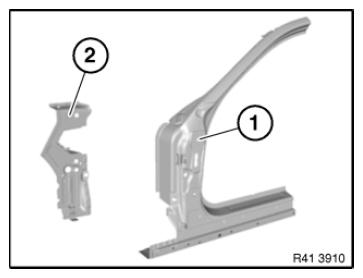

The following new body parts are required:
- (1) A-pillar, outer
- (2) Connection, side frame
- (3) Shaped part, carrier support, wheel arch, front (not shown in illustration)
- (4) Shaped part, carrier support, wheel arch (not shown in illustration)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N7 | 7 |
| Blind rivets N3 | 2 |
| Cleaning agent R1 | 1 |
| Sealant D1 | |
| Cavity wax remover |
