Installing door post, front

Clean bonding surfaces (1) with cleaning agent R1.

Apply sealant to cavity sealing (2). See CAVITY ACOUSTIC BAFFLE (EXPANDED)  or CAVITY ACOUSTIC BAFFLE (NOT EXPANDED) .

Apply adhesive to bonding surfaces.

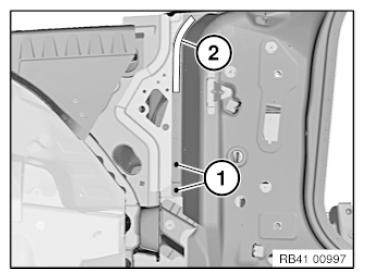

Fig 1: Identifying Adhesive Applying Areas On Bonding Surfaces And Cavity Sealing

Courtesy of BMW OF NORTH AMERICA, INC.

Install new parts and reinforcement plates with alignment bracket or universal mount.

At the same time, make sure water drain hose of slide/tilt sunroof is correctly fitted.

In areas (1), rivet new part with blind rivets N7.

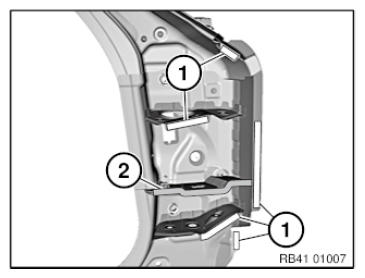

Fig 2: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1), rivet new part with blind rivets N7.

Weld new part in area (2).

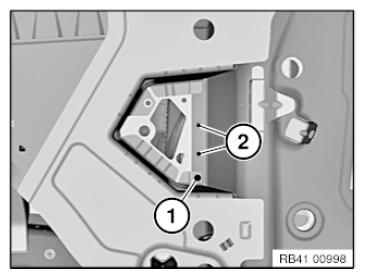

Fig 3: Identifying Blind Rivets And Welded Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Install side frame connection new part and rivet with blind rivets.

Weld new parts in the remaining joint areas.

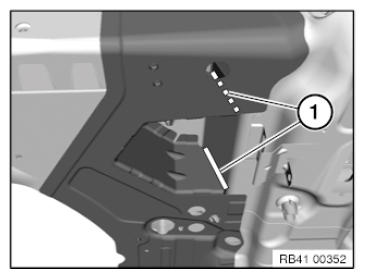

Fig 4: Identifying Blind Rivet Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.

MAG-weld new part in areas (1).

To do so, apply 10 mm long fillet welds at spacing of 15 mm.

Weld new part in the remaining joint areas.

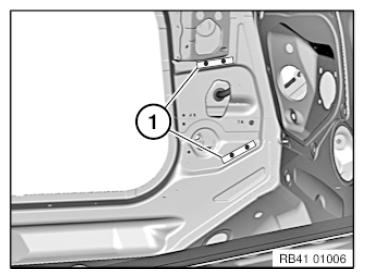

Fig 5: Identifying Wheel Arch Component MAG-Welding Area

Courtesy of BMW OF NORTH AMERICA, INC.
