Removing rear trim panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Operation is partially described on the left side. Right side identical.

Release screws (1) and remove support (2).

Tightening torque 41 34 1AZ .

Version with automatic tailgate activation:

Shut down automatic read lid actuation. See REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR AUTOMATIC OPERATION OF TAILGATE SYSTEM .

IMPORTANT: Risk of damage to spindle drive: only move rear lid slowly by hand.
If necessary, remove spindle drive. See LEFT SPINDLE DRIVE and RIGHT SPINDLE DRIVE .

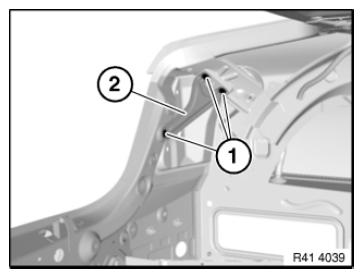

Fig 1: Identifying Rear Trim Panel Screws And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Open weld joints in areas (2) from inside.

Remove rear trim.

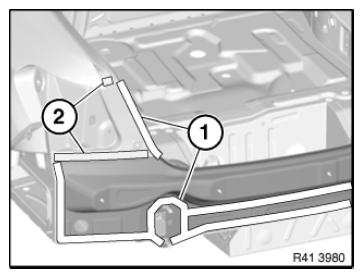

Fig 2: Identifying Rear Trim Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.
