Preparation of new part

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Slide in rear panel (1) from below in upward direction and adjust to fit and secure in conjunction with rear lid and rear lights.

NOTE: On vehicles with a sensor for lane change warning, also check the bumper guide for correct seating. See SENSOR FOR LANE CHANGE WARNING ON LEFT OR RIGHT .

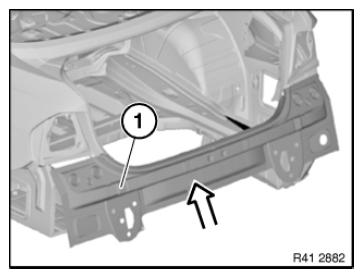

Fig 1: Sliding Rear Trim Panel

G08505632

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Retaining screws must not be used in area (1)

In areas (2 to 5) set 4.2 mm dia. holes for blind rivets N3:

Area	Number
2	1
3	4
4	4
5	3

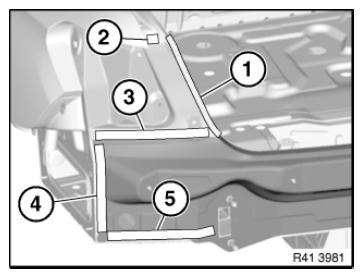

Fig 2: Identifying Blind Rivet Holes Area

G08505633

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) set 8 holes for blind rivets N3. In so doing, drill the two outer holes from the inside outwards.

Then connect the outer holes on the outside with a line. Drill the remaining holes on the line from the outside.

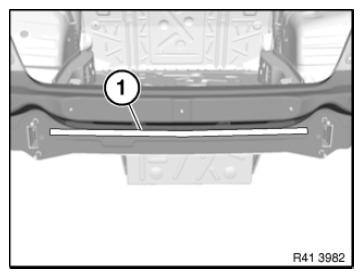

Fig 3: Identifying Blind Rivet Hole Area

G08505634

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) set seven □ 4.2 mm bore holes for N3 blind rivets.

IMPORTANT: No blind rivets may be used in areas (2)!
Dimension A = 10 cm

Remove new part again and deburr bore holes.

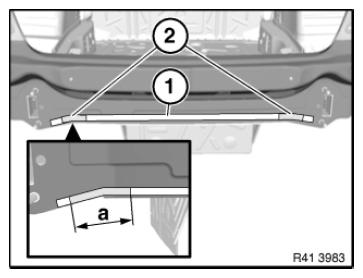

Fig 4: Identifying Blind Rivet Holes Area

G08505635

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.
