Installing rear trim panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Make sure adhesive application is closed in area (1)! (watertightness).

Fig 1: Identifying Rear Panel Adhesive Applying Area

G08505636

Courtesy of BMW OF NORTH AMERICA, INC.

Slide in rear trim panel (1) from bottom upwards.

Rivet rear panel.

NOTE: When sliding in rear trim panel, make sure there is sufficient adhesive on bonding surfaces.

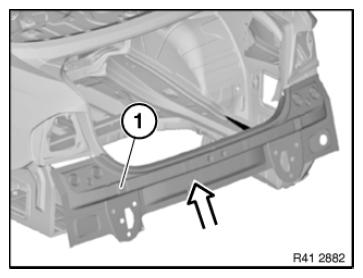

Fig 2: Sliding Rear Trim Panel

G08505637

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1), rivet tail panel with 4 punch rivets N4.

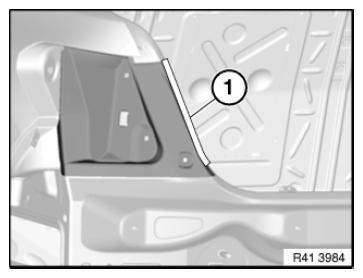

Fig 3: Identifying Tail Panel Punch Rivets Area

G08505638

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear trim panel in area (1) and remove emerging adhesive.

Before the adhesive has hardened, install the support for the bumper trim.

IMPORTANT: Prevent emerging adhesive from coming into contact with support.
Do not use any cleaning agents containing solvents.

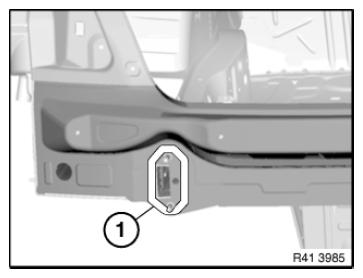

Fig 4: Identifying Rear Trim Panel Adhesive Applying Area

G08505639

Courtesy of BMW OF NORTH AMERICA, INC.

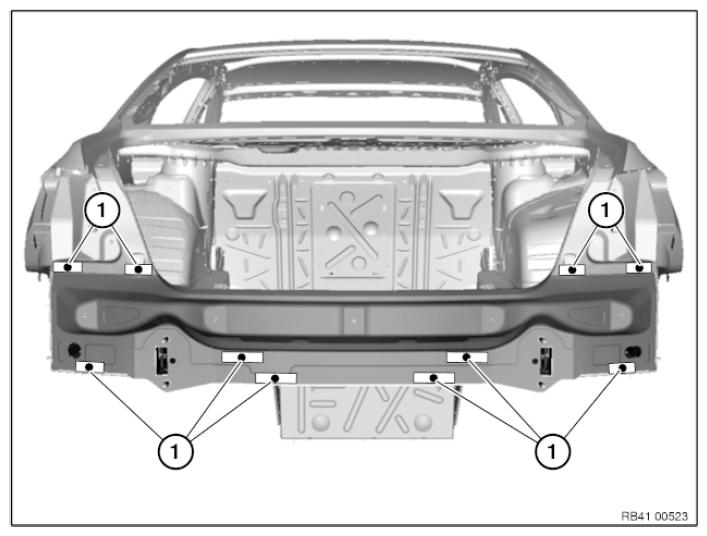

Fig 5: Identifying EMC Screws Installing Areas

G08505640

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive install 10 EMC SCREWS in the areas (1).
