41 5.... Removing And Installing Rear Side Doors

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body components.

The graphics are schematic representations and are to be applied to the relevant vehicle type.

Open door.

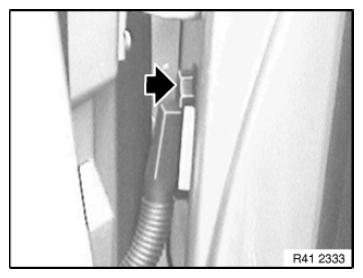

Release screw on connector frame.

Front door:

Tightening torque 41 51 4AZ .

Rear door:

Tightening torque 41 52 4AZ .

Fig 1: Locating Connector Frame Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure door against closing.

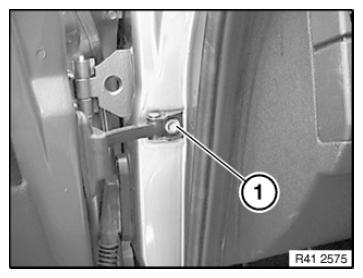

Release screw (1) on door stop.

Front door:

Tightening torque 51 21 3AZ .

Rear door:

Tightening torque 51 22 3AZ .

Open door up to limit position.

Fig 2: Identifying Door Stop Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

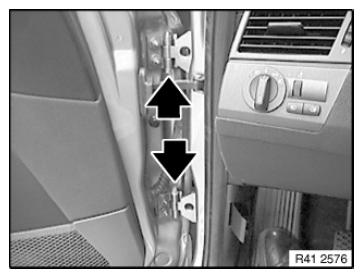

Release screws between both hinge elements at top and bottom.

Front door:

Tightening torque 41 51 1AZ .

Rear door:

Tightening torque 41 52 1AZ .

Fig 3: Locating Hinge Elements

Courtesy of BMW OF NORTH AMERICA, INC.

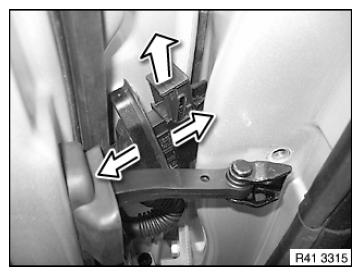

Pull plug connection from door post, unlock by pulling out bar and detach.

Unhinge door by moving upwards and placing it on a suitable surface.

Installation:

If necessary, adjust DOOR .

Fig 4: Pulling Plug Connection From Door Post

Courtesy of BMW OF NORTH AMERICA, INC.
