Preparation of new part

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

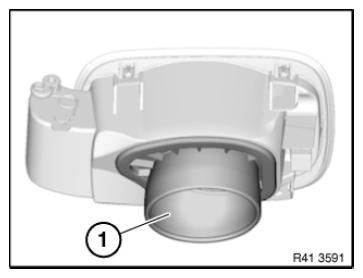

Remove rubber collar (1) from new part.

Fig 1: Identifying Rubber Collar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

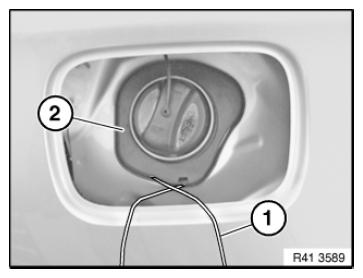

Fit approx. 0.5 m long cable (1) in groove on rubber collar (2).

Fig 2: Identifying Cable And Rubber Collar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

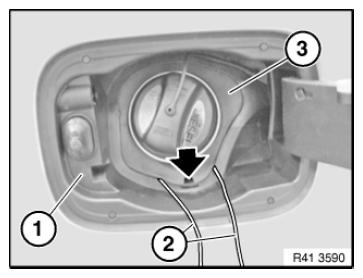

Install cover bowl (1).

Thread ends of cable (2) outwards.

Align bottom rubber collar (3) with recess (see arrow in illustration).

Pull rubber collar (3) over the cover bowl by pulling the ends of cables (2).

Fig 3: Identifying Cover Bowl, Cable And Rubber Collar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slowly pull out cable ends (2).

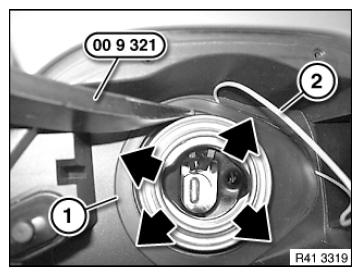

Press rubber collar (1) into groove with special tool 00 9 321 .

Fig 4: Pressing Rubber Collar Into Groove With Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

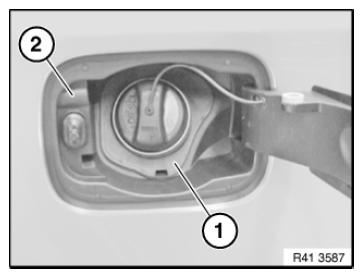

Cover bowl (2) must snap into place 4 times.

After installing, carefully check cover bowl at clips for secure fit.

There must be no discernible gap between the sealing lip of the cover bowl and the side panel in the area.

Make sure rubber collar (1) is correctly seated (watertightness).

Fig 5: Identifying Rubber Collar And Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

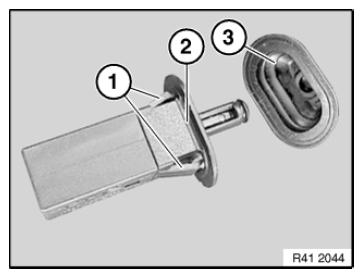

Catches (1) on ejector (2) must not be damaged.

Check protective cap (3) for correct seating.

(Watertightness!)

Fig 6: Identifying Catches, Ejector And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
