41 63 003 Replacing Cover Bowl: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
NOTE:
Carry over schematic representation to the relevant vehicle type.
IMPORTANT:
Deformation of the sheet metal flanges in the side panel and the wheel arch results in permanent vehicle leakage. Carry out removal/installation with great care.
The following new body parts are required:

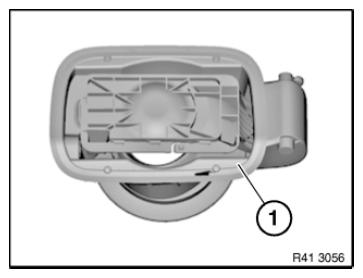

- (1) Filler bowl
Courtesy of BMW OF NORTH AMERICA, INC.
Release rubber collar (1) from cover bowl (2) by pressing inward.
NOTE:
Rubber collar (1) remains attached to vehicle.
Courtesy of BMW OF NORTH AMERICA, INC.

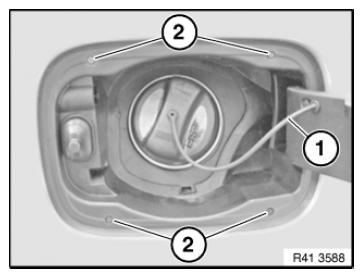

Press retaining strap (1) inwards and remove.
Remove grommets (2).
NOTE:
Grommets (2) are replaced with new cover bowl.
Courtesy of BMW OF NORTH AMERICA, INC.

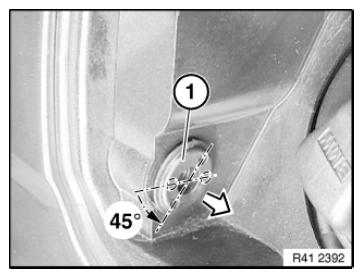

Turn sleeve (1) through approx. 45° and pull out in direction of arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
Installation:
Locks (1) on left/right of cover (2) must not be damaged.
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
For purposes of clarity, picture shows cover bowl removed.

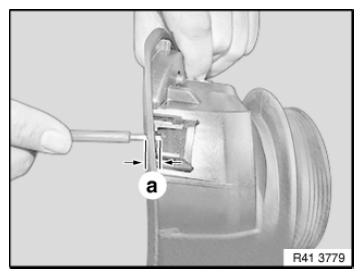

Insert screwdriver to specified measurement a and unlock cover bowl catch.
Measurement a = approx. 10 mm
Courtesy of BMW OF NORTH AMERICA, INC.

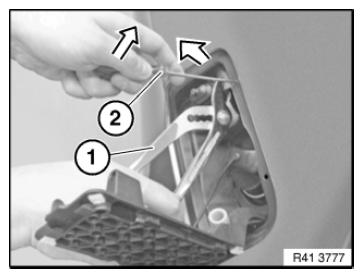

Keep cover bowl tensioned with pliers (1).
Unlock catches individually with screwdriver (2).
Unlock catches in following order:
- Top left
- Bottom left
- Top right
- Bottom right
Move screwdriver in opposite direction at both lower catches.
Courtesy of BMW OF NORTH AMERICA, INC.

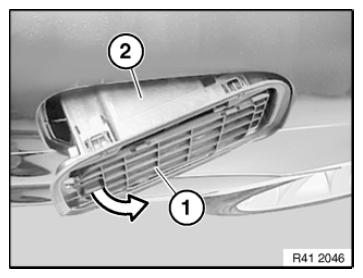

Close hinge arm (1).
IMPORTANT:
Do not damage sheet metal flange of side panel.
Carefully twist out cover bowl (2) at first at rear in direction of arrow from side panel and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
