41 63 000 Removing And Installing Flap For Fuel Filler Neck

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The illustration is a schematic representation and is to be applied to the relevant vehicle type.

Open fuel filler flap.

Lever out lock (2) and detach fuel filler flap (1) in direction of arrow.

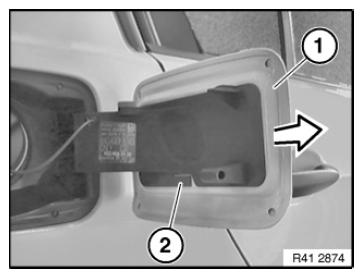

Fig 1: Removing Lock And Fuel Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.
