41 31 010 Replacing Outer Roof Skin (Version With Slide/Tilt Sunroof): Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures in REPAIR STAGE 2 .
Following parts are required (refer to BMW Electronic Parts Catalogue):

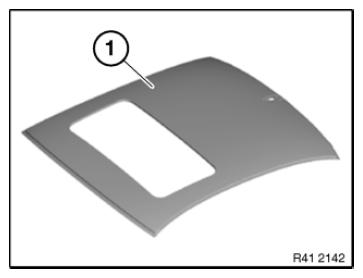

- Roof outer skin
Additional required parts (not shown in illustration):
| Description | BMW Part number | Quantity |
|---|---|---|
| Sound insulation | 07 14 6 949 300 | 1 |
| Blind rivets for holder | 51 41 7 068 752 | 4 |
| Blind rivets for earth strap | 07 14 7 216 857 | 8 |
Additionally required CONSUMABLES :
| Material | Quantity |
|---|---|
| Adhesive K2 | 3 |
| Adhesive K5a | 1 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
Tools also required:
- Roof pliers set, BMW Order number: 81 43 2 158 707
see BMW Aftersales Assistance Portal (ASAP) Service/Technology - Workshop Equipment
NOTE:
Store adhesive at room temperature.
Adhere to adhesive processing temperature of 15 - 28 ° C without fail.
Prior to installation, store roof outer skin and vehicle for at least 12 hours at room temperature (17 °C to 35 °C).
