41 12 557 Stripping Operations - Replacing Luggage Compartment Floor, Middle (Tail Panel Removed)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.

Remove exhaust system (job number: 18 00 020)
Remove heat shield
Remove spare wheel well trim panel at front and rear.

Remove BATTERY .

Remove NEGATIVE BATTERY CABLE (1).

Release nut (2) and remove ground connection. Tightening torque 41 34 2AZ .

Disconnect plug connections and remove control units (3).

Release wiring harness (4) and place to one side.

Release positive battery cables (5) and lay to one side.

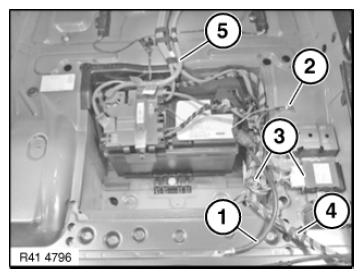

Fig 1: Identifying Control Units, Battery Cables, Wiring Harness And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
