41 12 557 Replacing Middle Luggage Compartment Floor (Tail Panel Has Been Removed): Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Observe procedures in REPAIR STAGE 3 .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Operation is partially described on the left side. Right side identical.

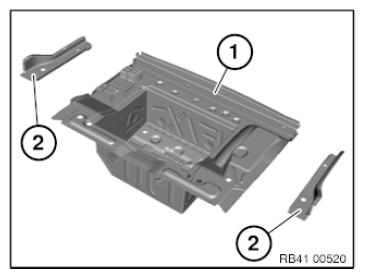

The following new body parts are required:
- (1) Luggage compartment floor, rear
- (2) Reinforcement, side member
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Blind rivets N3 | 40 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
