41 33 040 Replacing Front Left Or Right Side Wall Holder: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Side wall removed.
Transfer the systematic diagram onto the respective holder version.
Transfer the systematic diagram onto the respective holder version.
General information:
Observe procedures in REPAIR STAGE 2 .

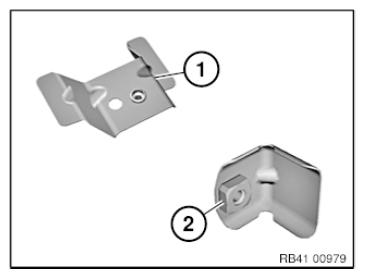

The following new body parts are required:
- (1) Holder, side wall, front (variant 1)
- (2) Holder, side wall, front (variant 2)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Blind rivets N3 | 2 |
| Cleaning agent R1 | 1 |
