Removing actuator

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Remove protective caps and screw in and tighten retaining screws M8 (1).

Remove resetter (2).

NOTE: The retaining screws are required as aids to fitting the actuator.
After the actuator has been installed, retaining screws must be removed again!

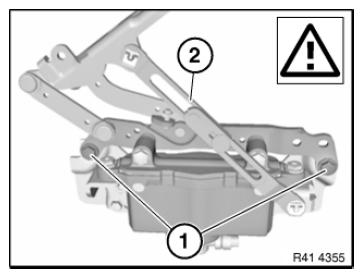

Fig 1: Identifying Resetter And Retaining Screws M8

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and slowly raise actuator (2) until connector on underside of actuator is accessible.

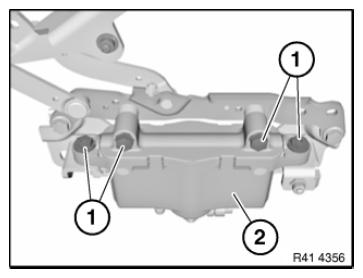

Fig 2: Identifying Actuator And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull lock (1) in direction of arrow.

Then press together connector fastener on both sides and detach connector (2).

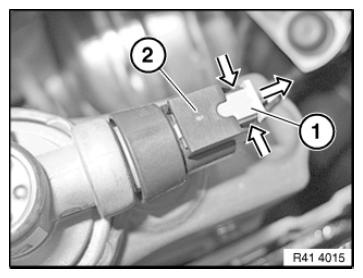

Fig 3: Pulling Lock

Courtesy of BMW OF NORTH AMERICA, INC.
