Removing actuator

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

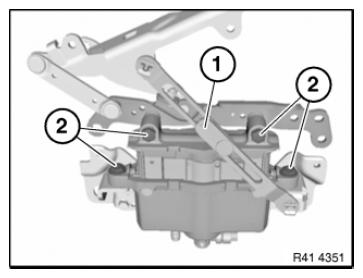

Remove resetter (1).

Release screws (2) and slowly raise actuator until connector on underside of actuator is accessible.

Fig 1: Identifying Resetter And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

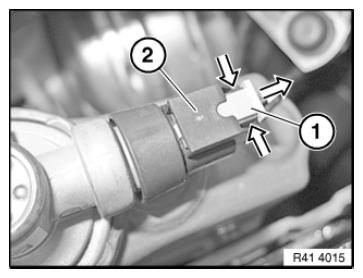

Pull lock (1) in direction of arrow.

Then press together connector fastener on both sides and detach connector (2).

Installation note:

PROCEDURE after actuator triggering.

Fig 2: Pulling Lock

Courtesy of BMW OF NORTH AMERICA, INC.
