Stamping second vehicle identification number
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

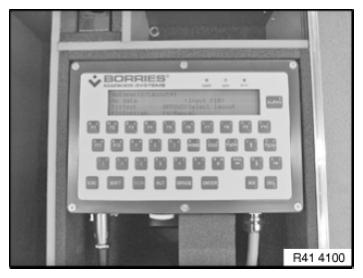

Display input:
- Select Layout 2 with arrow button.
- Press "ENTER" button.
NOTE:
With Layout 2 the already entered vehicle identification number is stamped in line 2.

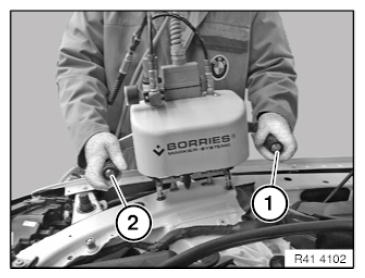

Start stamping operation with pushbutton (2).
After the stamping operation, if necessary adapt ENGINE COMPARTMENT LID SEAL LOCATOR of second vehicle identification number.
Following layout functions are available:
| Layout selection | Vehicle identification number |
|---|---|
| Layout 1 | In line 1 |
| Layout 2 | In line 2 |
| Layout 3 | Turned through 180° in line 1 |
| Layout 4 | Turned through 180° in line 2 |
| Layout 5 | Cross through in line 1 |
| Layout 6 | Cross through in line 2 |
