Procedure for additional vehicle identification number

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Cross through original vehicle identification number.

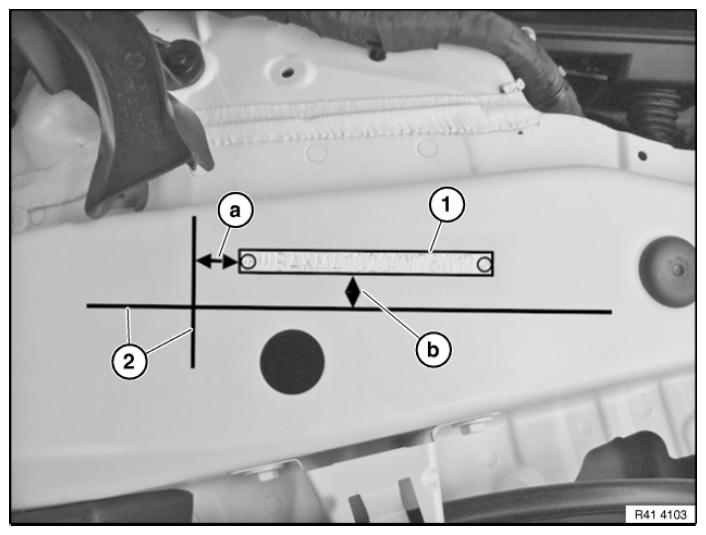

Fig 1: Identifying Original Vehicle Identification Number And Position Line Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Remove ENGINE COMPARTMENT LID SEAL LOCATOR

(1) = Original vehicle identification number (line 1).

Mark position lines (2) in accordance with specified dimensions/measurements.

Dimension a = 12 mm

Dimension b = 10 mm
