41 00... Reinforcement Plate With Stud Bolt (Bonded): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.

A reinforcement plate is bonded in to ensure sufficient strength.

Reinforcement plates are available as new parts and must also be used (refer to ELECTRONIC PARTS CATALOGUE ).

NOTE: The following graphics serve as general illustrations of reinforcement plate repair work. They are applicable to sectional repairs in the outer skin area.

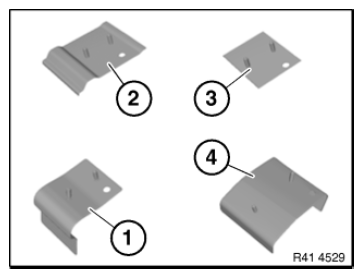

Overview of reinforcement plates:

Reinforcement plate, sill
Reinforcement plate, C-pillar
Reinforcement plate, universal
Reinforcement plate, C- or D-pillar
Lock nuts (not shown in illustration)
- Plastic nut dia. 18 mm, BMW Part number 07 14 1 943 122
- Expansion nut dia. 22 mm, BMW Part number 07 14 7 169 847

  Fig 1: Identifying Reinforcement Plate Sill, C-Pillar, Universal And C/D-Pillar
  Courtesy of BMW OF NORTH AMERICA, INC.

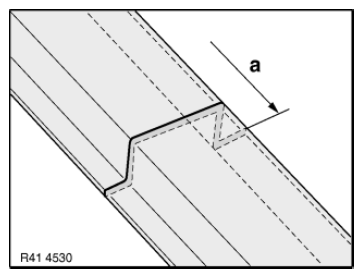

Mark component in accordance with dimension a and cut.

Fig 2: Identifying Reinforcement Plate Cutting Mark Position

Courtesy of BMW OF NORTH AMERICA, INC.
