Preparation of new part

Cut new part (1) in accordance with cut on vehicle and if necessary adjust to fit with straightening attachment or universal mount.

Fig 1: Identifying Reinforcement Plate Cutting Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Make reinforcement plate (1) from trim of new part (2).

Length of reinforcement plate is 80 mm.

Fig 2: Identifying Reinforcement Plate And Trim Part

Courtesy of BMW OF NORTH AMERICA, INC.

Slide reinforcement plate (1) half-way into component on body and fasten with 2 self-tapping screws (2).

Fig 3: Fitting Part Into Reinforcement Plate Bonding Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new part (1) to fit and set 4.3 mm dia. bore holes (2).

Remove new part again.

Release self-tapping screws (3).

Remove reinforcement plate.

Drill out bore holes (3) for screws to 4.3 mm dia.

Deburr all bore holes.

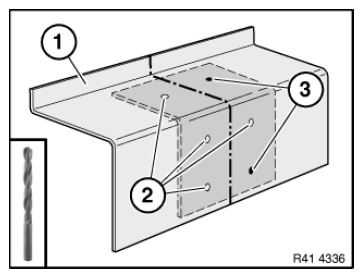

Fig 4: Identifying Reinforcement Plate, Bore Holes And Self-Tapping Screws

Courtesy of BMW OF NORTH AMERICA, INC.
