Installing reinforcement plate

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive (1) to reinforcement plate bonding surface.

Carefully slide reinforcement plate half-way into body component (2).

IMPORTANT: When joining reinforcement plate, make sure there is sufficient adhesive on bonding surfaces.

Fig 1: Identifying Adhesive Applying Areas On Reinforcement Plate Bonding Surface

Courtesy of BMW OF NORTH AMERICA, INC.

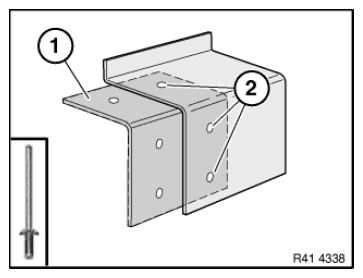

Rivet reinforcement plate (1) up to half-way with blind rivets N3 (2).

Fig 2: Identifying Reinforcement Plate And Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Apply adhesive (1) to reinforcement plate bonding surface.

Fig 3: Identifying Adhesive Applying Areas On Reinforcement Plate Bonding Surface

Courtesy of BMW OF NORTH AMERICA, INC.

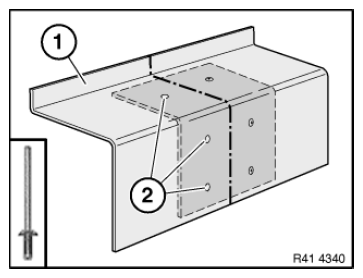

Install new part (1) with straightening attachment or universal mount and rivet with blind rivets N3 (2).

After adhesive has hardened, flatten adhesive area and seal blind rivets.

Fig 4: Identifying Reinforcement Plate And Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
