37 12 092 Replacing rear left or right spring strut: Installation

WARNING: This page is about a different car, the 2011 BMW 750xi and 2010 BMW 750xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not compress coil spring to full extent.
Coils of coil spring must be located completely in recesses of special tools 31 3 351 !

Tension coil spring.

Fig 1: Removing Coil Spring From Special Tool (31 3 351)

G06889594

Courtesy of BMW OF NORTH AMERICA, INC.

Check auxiliary damper (1) with protective tube and spring pad (2) for damage, replace if necessary.

IMPORTANT: Coat contact surface of spring pad (2) to shock absorber with Circo Light.

Fig 2: Identifying Auxiliary Damper With Protective Tube And Spring Pad

G08505339

Courtesy of BMW OF NORTH AMERICA, INC.

Attach support cup to piston rod.

Insert shock absorber in tensioned coil spring.

Fig 3: Identifying Shock Absorber Inserted In Tensioned Coil Spring

G08505343

Courtesy of BMW OF NORTH AMERICA, INC.

Check support bearing for damage, replace if necessary.

Attach support bearing and plate to piston rod.

IMPORTANT: One threaded bolt (1) on the support bearing must be on one plane with the bore in the rubber mount (2) and the opposite side of the bush (3).

Fig 4: Identifying Bush, Rubber Mount And Threaded Bolt

G05476838

Courtesy of BMW OF NORTH AMERICA, INC.

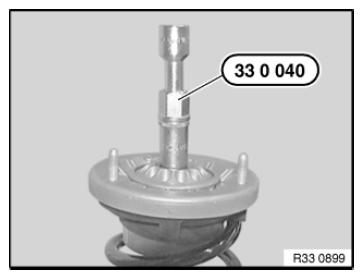

Replace nut and tighten down with special tool 33 0 040 .

Tightening torque 33 52 2AZ .

Fig 5: Releasing Nut Using Special Tool (33 0 040)

G08505338

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Align support bearing by way of spring pad to end of coil spring.

Fig 6: Identifying Support Bearing And Coil Spring Alignment Area

G04742579

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Lower end of coil spring must rest on stop of spring pad!

Relieve tension on coil spring.

Fig 7: Identifying Lower End Of Coil Spring And Spring Pad Alignment Area

G04742578

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Secure upper spring strut in body.
Align shock absorber eye to swivel bearing by turning shock absorber.
Code spring strut with ISID tester and check software version
