52 24 034 Replacing armrest upper part for rear seat backrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Open center armrest.

Detach cover from adhesive band.

Release screws (1).

Tightening torque 52 24 03AZ .

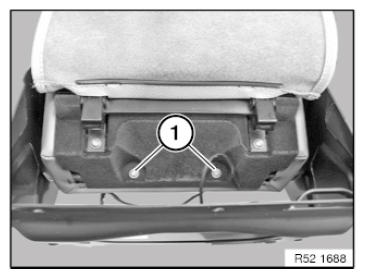

Fig 1: Identifying Centre Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining lugs on upper part (1) on left and right with special tool 00 9 317 .

NOTE: Cover rear seat padding to avoid direct contact with special tool 00 9 317 .

Press rear seat padding to one side for better access.

At same time unclip upper part (1) upwards in direction of arrow.

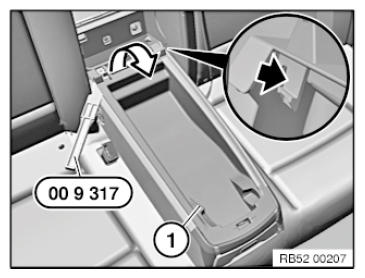

Fig 2: Releasing Retaining Lugs Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully clip out upper part (1) in stages from rear to front.

Installation note:

Retaining lugs of upper part (1) must not be damaged.

If necessary, replace upper part (1).

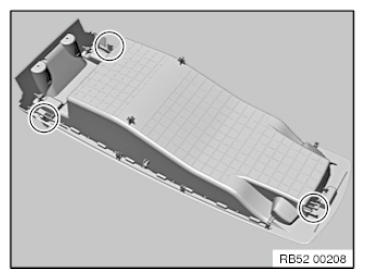

Fig 3: Identifying Retaining Lugs Upper Part

Courtesy of BMW OF NORTH AMERICA, INC.

Remove upper part and unlock and disconnect plug connection (1) on underside.

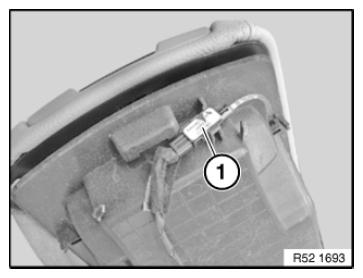

Fig 4: Identifying Plug Connection On Underside

Courtesy of BMW OF NORTH AMERICA, INC.
