52 25... Overview of rear seat (comfort)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

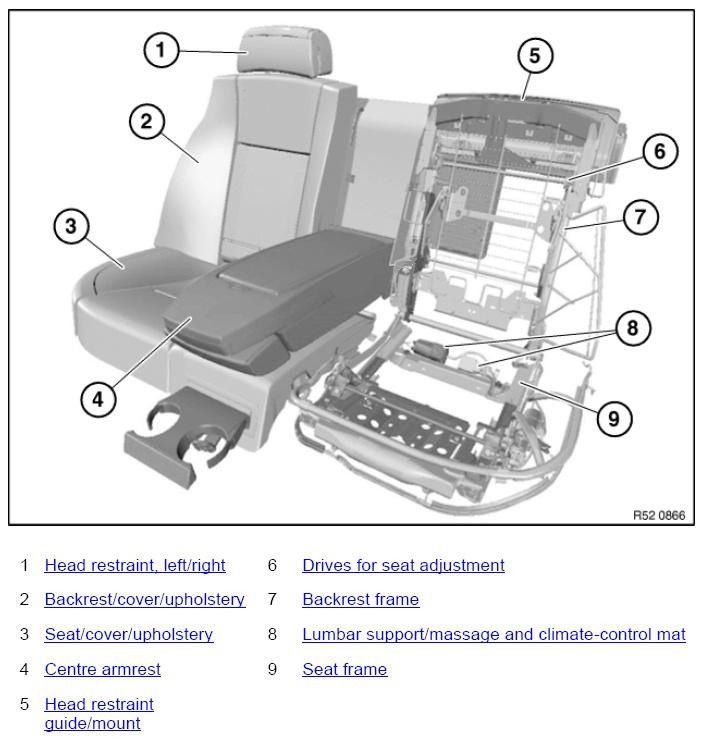

Fig 1: Overview Of Rear Seat
G08509353Courtesy of BMW OF NORTH AMERICA, INC.
