52 25 015 Removing and installing/replacing backrest for left or right rear seat: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear HEAD RESTRAINT
- Remove left or right REAR SEAT
- Move backrest completely forwards
Installation:
- Microencapsulated screws and nuts (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws/nuts must not be retightened
- Clean thread of nut beforehand in event of repeated use
NOTE:
For purposes of clarity the following operations are shown in the released state.

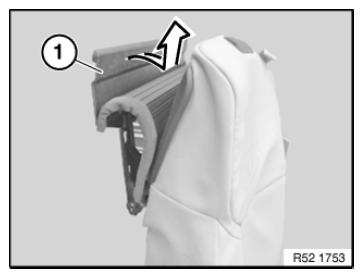

Detach cover (1) from Velcro-type fastener.
Pull cover (1) upwards out of guide from four-bar lever.
Installation:

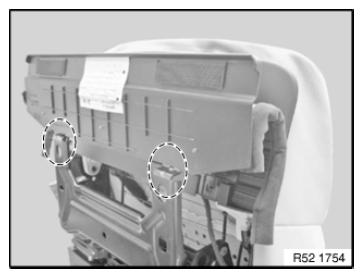

Make sure cover guide is correctly seated on four-bar lever.

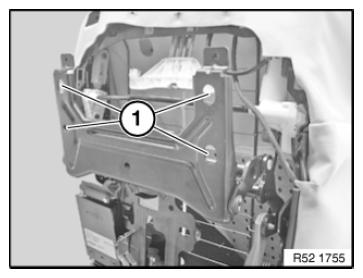

Unscrew nuts (1).
Installation:
Replace nuts (1).
Tightening torque 52 25 04AZ .

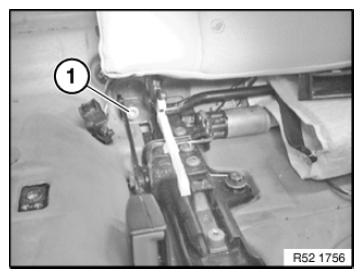

Release screw (1).
Installation:
Replace screw (1).
Tightening torque 52 25 05AZ .

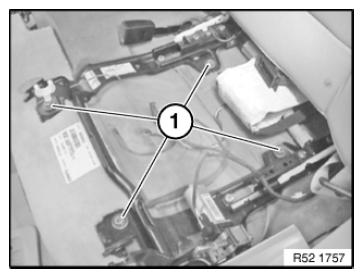

Unscrew nuts (1).
Installation:
Replace nuts (1).
Tightening torque 52 25 05AZ .
