67 31 600 Removing and installing/replacing forward/back seat adjustment drive unit (comfort seats in rear passenger compartment): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COMPLETE UPHOLSTERY FOR REAR SEAT

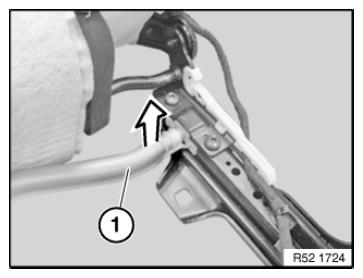

Unclip flex shaft cover (1) towards top.

Fig 1: Disconnecting Flex Shaft Cover

Courtesy of BMW OF NORTH AMERICA, INC.

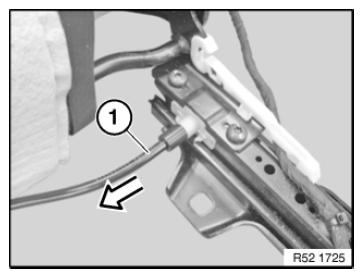

Pull long sleeve tube (1) with flex shaft out of gearbox.

Fig 2: Pulling Long Sleeve Tube From Gearing

Courtesy of BMW OF NORTH AMERICA, INC.

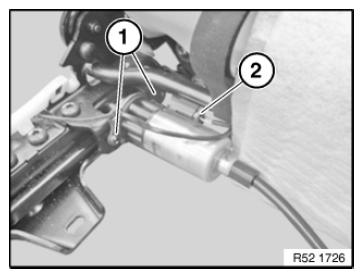

Disconnect plug connection (2).

Release screws (1).

Tightening torque 67 31 10AZ .

Remove forward/back seat adjustment drive unit.

Detach flex shafts from drive.

Fig 3: Identifying Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
