67 31 570 Removing and installing/replacing drive unit for head restraint height adjustment on left or right front seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CRASH ACTIVE HEADREST

Pull backrest cover (1) in direction of arrow from sheet metal tabs (2).

Detach backrest cover (1) on both sides from backrest frame.

Lift cover with padding (1) in upper area over backrest frame.

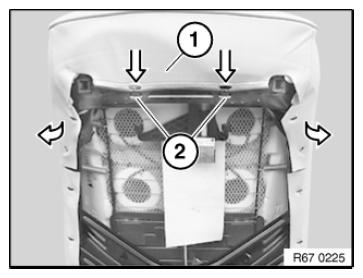

Fig 1: Lifting Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 67 31 3AZ .

Feed out drive unit for head restraint height adjustment (3) in direction of arrow and remove.

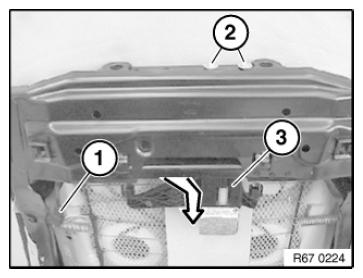

Fig 2: Removing Head Restraint Height Adjustment Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
