67 31 520 Removing and installing/replacing seat height adjustment drive unit: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVER'S SEAT or PASSENGER SEAT .

Set down front seat sideways on a suitable surface.

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 67 31 1AZ .

Feed out seat height adjustment drive unit (3) and remove.

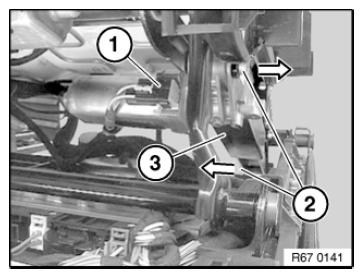

Fig 1: Removing Seat Height Adjuster Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Fit seat height adjustment drive unit (1) with plastic clamp (2) only.

Make sure plastic clamp (2) is correctly seated.

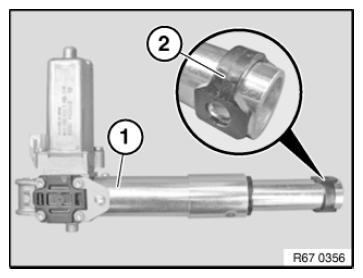

Fig 2: Identifying Seat Height Adjustment Drive Unit And Plastic Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
