Removing forward/back seat adjustment motor

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten plug connection (1) and disconnect.

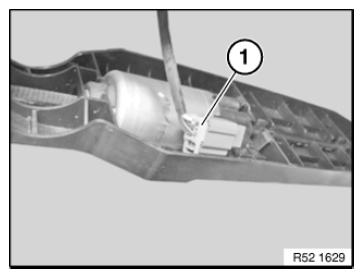

Fig 1: Identifying Plug Connection
G08508737Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining tabs.

Lift drive (1) with flex shaft out of guide in direction of arrow.

Pull flex shaft on left and right out of gearbox.

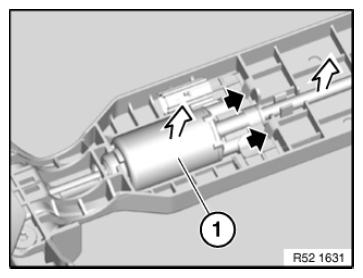

Fig 2: Pulling Left And Right Flex Shaft From Gearbox
G08508738Courtesy of BMW OF NORTH AMERICA, INC.
