52 14 422 Replacing padding for driver's seat backrest

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove backrest cover. See BACKREST COVER (NORMAL/ELECTRIC SEAT) or BACKREST COVER (SPORT SEAT) .

Remove dividing net (1) towards top.

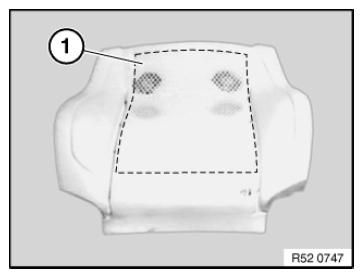

Fig 1: Identifying Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fan (1) towards top.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).

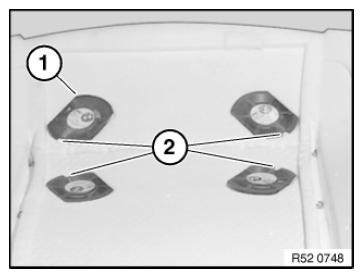

Fig 2: Identifying Fans And Cable Routing

Courtesy of BMW OF NORTH AMERICA, INC.
