Replacement only

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Pull trim wires out of backrest cover.

Installation note:

Slide trim wires into new backrest cover.

If necessary, cut locators for trim wires in new part.

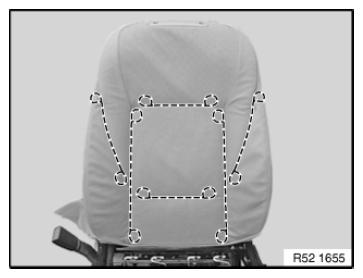

Fig 1: Identifying Backrest Cover And Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out locking strip of head restraint guide with special tool 1 00 9 317 .

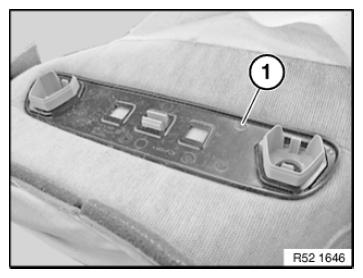

Fig 2: Identifying Head Restraint Guide Locking Strip

Courtesy of BMW OF NORTH AMERICA, INC.
