52 14 207 Removing and installing ambient light
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear panel on rear seat backrest. See REAR PANEL and UPPER REAR PANEL .
NOTE:
The procedure for fitting the ambient light may differ, depending on the equipment specification.

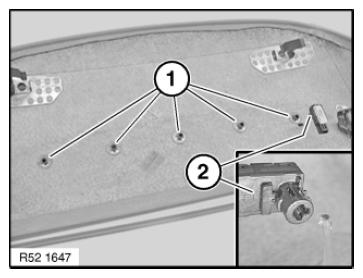

Version 1:
Release shaft clamping rings (1).
Detach plug (2) from light guide.
Installation note:
Make sure plug is correctly engaged on light guide.
Remove ambient light.

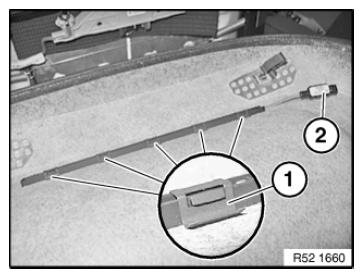

Version 2:
Loosen clamps (1).
Detach plug (2) from light guide.
Installation note:
Make sure plug is correctly engaged on light guide.
Remove ambient light.
