52 14 060 Removing and installing/replacing valve body for left or right front lumbar support (normal/electric)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR PANEL on front seat backrest.

Remove valve body in direction of arrow from backrest frame.

Installation note:

Check that valve body is correctly seated.

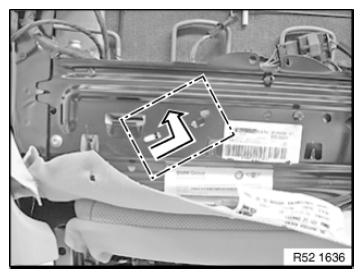

Fig 1: Removing Valve Housing From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (3) and disconnect.

Unlock quick connectors and detach air hoses (1) and (2).

Valve unit for lumbar support:

Hose (clear), lumbar support drive
Hose (blue/red), lumbar support

Installation note:

Connections are coded against incorrect assembly.

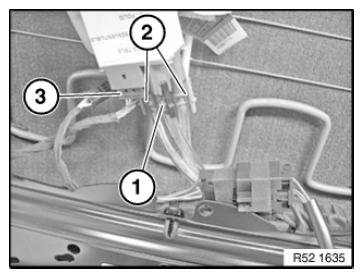

Fig 2: Identifying Air Hoses And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out a FUNCTIONAL CHECK .
